CAB Maestro 4M Feeding pcb cutting machine PCBa separator pcb v-cut scoring depanelizer equipment

Product name: pcb cutting machine/v-cut pcb depanelizer/PCB Cutting tool
Aplication:LED panel,fiberboard,aluminum plate,aluminum substrate, copper substrate, FR4, glass fiber board
Place of Origin: China
Brand Name: ASCEN
Certification: CE
Model Number: ASC-508
Payment & Shipping Terms
Packaging Details: wooden case
Delivery Time: 3
Payment Terms: T/T ,Paypal ,West Union ,L/C
Supply Ability: 300 sets/ month

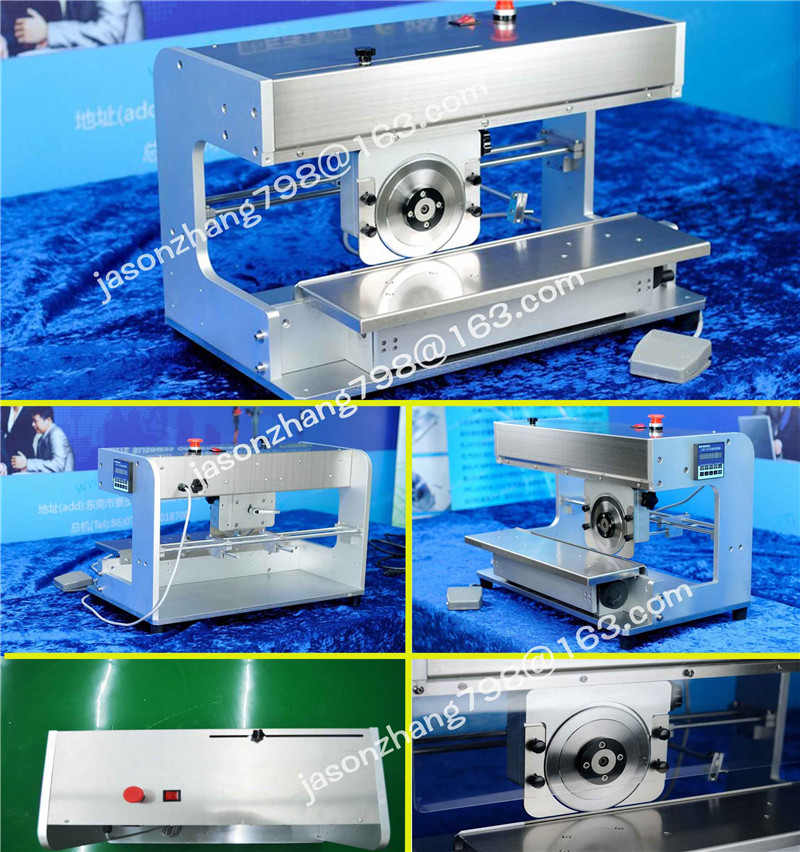

CAB Maestro 4M Feeding pcb cutting machine PCBa separator pcb v-cut scoring depanelizer equipment

Samtech pcba cutter can apply to LED panel,fiberboard,aluminum plate,aluminum substrate, copper substrate,
FR4, glass fiber board and so on.

ASC-508/509 pcb cutting machineTechnical specifications:

             conveyor belt size:    1040mm(L) x 142mm(W) x 127mm(H)  weight:11.3KG
conveyor belt packing size:    1090mm(L) x 192mm(W) x 177mm(H)  weight:12.3KG
Model number ASC-508 (no conveyor belt) ASC-509 (with conveyor belt)
Machine size 600*395*425mm 600*395*425mm
Packing size 640*420*450mm 640*420*450mm
Size of the conveyor belt none 1040mm*142mm*127mm
Knife material SHD61 imported high-speed steel SHD61 imported high-speed steel
Cutting speed  300,500mm/s 300,500mm/s
Cutting thickness 0.2-5mm 0.2-5mm
circular knife size 125mm(diameter) 125mm(diameter)
Blade length 360mm(length) 360mm(length)
Voltage AC220/110V 50-60HZ AC220/110V 50-60HZ
Machine weight 37kg 37kg+ 11.3kg
Packing weight 49kg 49+12.3KG
Power 40W 40W

Our wedsite:
More SMT periphery machine click :

ASC-508, 509 feeding PCB cutter features:

1.The feeding speed is adjustable with 500mm/s and 300mm/s. If the speed is fast enough, the quality is improved for the
    board is cut without burrs and rough selvedge .

2. The feed distance of the knife wheel is from 0 to 360mm(the tool length can be customized ) .
    The height of the knife wheel is fine-tuning from 0 to 2mm so that it is suitable for PCB of various kinds of thickness
    and the depth of V-CUT  groove. The height of work station is regulable from 0 to 50mm.

3. The forward and stop point can be set according to the plate length when feeding, the stop point for artificial setting.

4. The tailgate depth range: unlimited. The largest plate cutting width: unlimited, the maximum cutting length: 360mm,
    the plate thickness: 0.2-5.0mm. The  thickness between V groove: 0.25-2.0mm.

5. The upper and lower knives is made of imported high-speed steel material, which are durable and can be regrinded .

6. The machine can be in supporting use of a complete set of conveyor belt, which is convenient for the cut PCB to be
     send out automatically .

7. The platform is adjustable. It is good for the product quality when lifting the platform, because it will reduce stress
    and will not hurt the product.

8. The spacing device applies to products of different size, so as to improve the work efficiency.

ASC-508, 509 pcb separator advantages:

1.After soldering the plate of connecting pieces, it often hurts lines or breaks the electronic parts when breaking.
   This machine cuts with feed mode to reduce stress drastically, prevent the solder joint and parts from cracking
   and improve the productivity and quality.

2.With circle knife above and anvil blade below, when the board flow to the anvil blade, shift the switch, and the anvil
   blade move laterally to the set point, then the PCB board is cut off with smooth incision and no burrs.

The more operation video:
