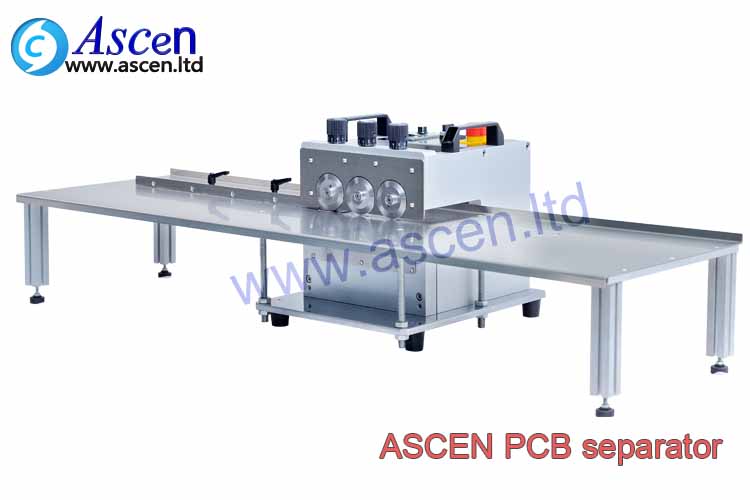

pcb auto cutting machine

Model:ASC-700N

Brand:ASCEN

Delivery Time:15 days

Desciption:

Send Enquiry Download brochure

Product Details

Application:
pcb auto cutting machine depaneling the PCB panel by 6 cutting wheel. The cutting process with the low stress because of the multiple cutting.suit for cutting LED aluminum PCB panel,LED copper substrate, LED T8 tube etc.

Description:

●Guide can be adjusted vertically to suit different LED board.
●Clearance between the circular blades can be precisely
adjusted by the knob
●Upper and lower circular blades can be reused after regrinding.
●Shape and sizes of the circular blades can be made according
to customer's specifications .
● Standard 2.4M Stainless steel platform(could be custom make)
● Lower cutting stress to improve separating effect
●Separating 2 PCBs at one time, PCB width could be adjustable from(0~12mm)

ASCEN as a PCB separator manufacturer provide the full SMT manufacturing equipment, producing different type PCB depaneling machine, include the blade moving type V-cut PCB separator, cutting disc type PCB cutting separator , Pneumatic cutting type PCB separator , Aluminum PCB separator , PCB punching separator , manual pcb separator, PCB depaneling router, Multi cutter PCB cutting machine are available as standard and customized products and can be equipped to fit special requirements

Specification

pcb auto cutting machine standard:

Item	Scope of application
Model number	ASC-700N
Dimensions(LWH)	1200506333mm (with 1.2M platform)	2400506333mm (with 2.4M platform)
Cutting speed	80/120/200/400mm/s
Power	60W
PCB Board thickness	0.2-2.5mm
Maximum PCB board length	Unlimited
Power Supply	1P AC220V 50Hz or 110V/60Hz
Weight	Approx.72Kg	Approx.88Kg
Note: Can customized the bigger pcb auto cutting machine module for the LED aluminum board with high component.
